Multi-zone diffusion furnace heaters
Large-diameter, multi-zone assemblies developed around tube size, temperature profile and installation envelope.
- Multi-zone thermal profile
- Large-diameter construction
- Drawing-based installation envelope
01Semiconductor and photovoltaic thermal systems
Ceramic fiber furnace chambers and high-temperature insulation materials
Large multi-zone heaters for diffusion furnace lines.
Ceramic fiber insulated, multi-zone heater assemblies for semiconductor and photovoltaic diffusion furnaces, with custom shells, supports, terminals and service sections.
Semiconductordiffusion furnace heaters
Photovoltaicmulti-zone thermal systems
OEMcased and custom heaters
01Vacuum forming
02CNC machining
03Embedded elements
04Metal shell assembly
05Product-specific testing
02 Product families
Materials and components
for high-temperature equipment.
Source ceramic fiber insulation, drawing-based furnace components and hot-gas filter elements. Select by operating temperature, product form, geometry, interfaces and required inspection.
Furnace heater assemblies
Fiber chamber, heating system and protective stainless-steel shell supplied as one engineered component.
- Ceramic fiber hot face
- Integrated heating elements
- Protective stainless-steel shell
Muffle & box furnace chambers
Integrated or assembled chambers with doors, frames, openings and element layouts made to drawing.
- Box and muffle geometry
- Door and access openings
- Element layout to drawing
Tube furnace chambers
Full-circle and split constructions for laboratory, pilot and industrial tube furnaces.
- Full-circle or split body
- Single or multiple zones
- Tube diameter to drawing
Dental furnace chambers
Two chamber families for dental porcelain firing and zirconia sintering equipment.
- Resistance-wire porcelain chamber
- MoSi2 or SiC zirconia chamber
- Round preferred · square available

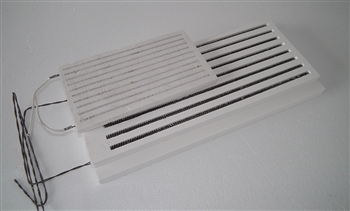

Ceramic fiber heating panels
Custom ceramic fiber heating panels with resistance-wire grooves, lead exits, thermocouple openings and mounting details made to the furnace drawing.
- Flat or shaped hot face
- Custom groove pattern
- Lead and mounting interfaces

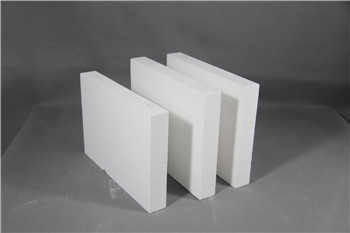

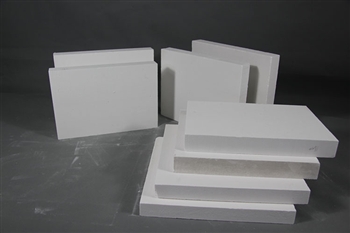

Ceramic fiber board
Rigid boards for furnace linings, thermal barriers and CNC-machined components.
- 1260–1900 grades
- Custom thickness and density
- Cut or CNC-machined shapes
Ceramic fiber blanket
Flexible rolls in multiple grades, thicknesses and densities for layered insulation systems.
- Standard & custom grades
- Custom thickness and density
- Rolls or cut sections
Ceramic fiber paper
Thin, flexible sheets and rolls for gaskets, separators and confined insulation spaces.
- Thin flexible barrier
- Custom width and thickness
- Gaskets and separators
Ceramic fiber modules
Folded and compressed modules with application-specific dimensions, anchors and installation orientation.
- Folded fiber construction
- Anchor options
- Custom module dimensions
Vacuum-formed shapes
Vacuum-formed and machined parts with bores, channels, supports and locating faces made to equipment drawings.
- One-piece formed bodies
- CNC bores and channels
- Custom mating interfaces
High-temperature gas filtration
White porous elements filter high-temperature particulate. Yellow catalyst-bearing tubes combine particulate capture with the specified catalytic treatment.
- White particulate-filter elements
- Yellow catalyst-bearing tubes
- Tube sheet, sealing and pulse-cleaning interfaces
01Ceramic fiber hot face02Installed heating elements03Stainless-steel enclosure
03 Beyond insulation
Hot face, heating circuit and outer enclosure built as one assembly.
Order the ceramic fiber chamber with the required heating elements, openings, terminals, mounting points and stainless-steel enclosure.
- 01Built around the furnace
Inner chamber, outer envelope, tube diameter and access points follow your equipment drawing.
- 02Elements matched to the temperature
Metallic resistance wire, SiC and MoSi₂ heating systems are paired with suitable ceramic fiber grades for the required working temperature and furnace atmosphere.
- 03Inspection records for the order
The quotation can include dimensional, electrical, assembly and packing checks for the supplied configuration.
04 Material grades
Choose the heat class.
Then shape the part.
Grade availability follows the product form. Density normally corresponds to grade and construction, with custom-density production available for defined applications.
1900 grade Maximum service temperature up to 1800°C. Specify the product form, atmosphere, normal temperature, peak temperature and cycle in the RFQ.
05 Applications
Start with the equipment,
not the catalogue.
Choose an application to compare compatible materials, chamber constructions and the information needed for quotation.
01↗
Laboratory & muffle furnaces
Box chambers · doors · frames · heating panels
02↗
Tube furnaces
Full-circle, split and multi-zone OEM chambers
03↗
Dental furnaces
1200°C porcelain chambers and zirconia chambers for operation up to 1550°C
04↗
Semiconductor diffusion
Multi-zone heaters · thermal profile · installation
05↗
Photovoltaic heat treatment
Long furnace bodies · thermal insulation
06↗
Industrial heat treatment
Layered linings · hot-face boards · folded modules
07↗
RTO & waste-gas treatment
White filter elements · yellow catalytic tubes · vessel interfaces
08↗
Ceramic kilns & sintering
Module linings · thermal barriers · formed hot-zone parts
06 Manufacturing & delivery
From formed fiber to packed assembly.
Forming, machining, element installation, inspection and protected export packing are matched to the ordered component.
01Confirm drawing
02Select material
03Form & machine
04Install element
05Fire & inspect
06Pack & document

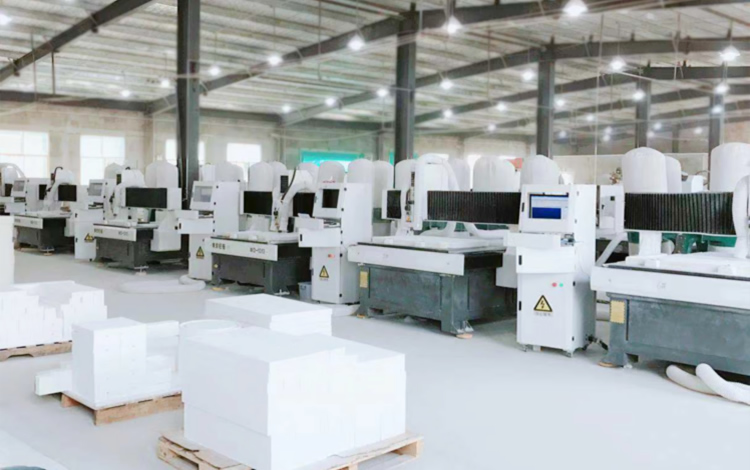

07SYNTHE in numbers
Material production and drawing-based component manufacture in one system.
SYNTHE combines fiber-material output, vacuum forming, machining, element installation, metal-shell assembly and inspection for standard insulation and custom furnace components.
View company profile ↗
50,000+ m²manufacturing facility
150+employees
40+patents
1,500+ m²laboratory
50+testing instruments and systems
40%+of employees in design and R&D
Annual production capacity
100,000+ metric tonnes/yearalumina fiber bulk
200,000+ pcs/yearrefractory material products
40,000+ pcs/yearultra-thin insulation products
08 Engineering resources
Technical data and RFQ tools.
Use technical data, selection guidance and drawing checklists to define the right geometry, grade and product form.
Manufactured chambers, heaters and ceramic fiber components
29 project & product references
Open resource ↗
Board vs blanket vs paper: where each form works
Material comparison
Open resource ↗
What to include in a custom furnace chamber drawing
Online checklist
Open resource ↗
Understanding ceramic fiber grade, density and shrinkage
Grade overview
Open resource ↗09 First questions
Before you send the drawing.
Can size, thickness, shape and density all be customized?+
Yes. SYNTHE supplies standard formats and manufactures custom combinations based on grade, product form, geometry and operating conditions.
Do all products come in every grade from 1260 to 1900?+
No. Available grades depend on the product form and construction. The quotation states the grade supplied for the selected product.
What information is needed for a furnace chamber quote?+
Inner dimensions, outer envelope, target temperature, voltage/power, heating zones, openings, quantity and a drawing or reference photo if available.
Can you provide a chamber with a stainless-steel shell?+
Yes. Cylindrical, split and other cased heater structures are available. The shell, mounting points and connection details are engineered to the application.
10 Request a quote
Get a quote for your thermal component.
Include the operating temperature, key dimensions and quantity. For heated products, add voltage, power, zones and terminal direction.
Send drawings directlyinfo@synthe-corp.com↗PDF, DWG, DXF, STEP, STP, JPG and PNG files are accepted.
Typical input
Drawing / dimensions · temperature · quantity · country
